ZED-002 Dual Channel LED Backlight Driver Board for LCD TV Monitor

ZED-002 Dual Channel LED Backlight Driver Board for LCD TV Monitor ,

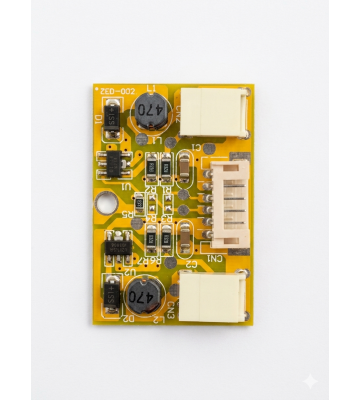

The ZED-002 Dual Channel LED Backlight Driver Board is a professional-grade, universal constant current step-up module designed for repairing and upgrading LCD monitors, televisions, and display panels. If your screen has sound but no picture due to a dark screen backlight failure, this driver board provides an efficient, stable power supply to illuminate your replacement LED strips.

Featuring a dual-output configuration, this compact board manages power distribution seamlessly across two separate LED channels, ensuring uniform brightness and prolonged backlight life.

Key Features:

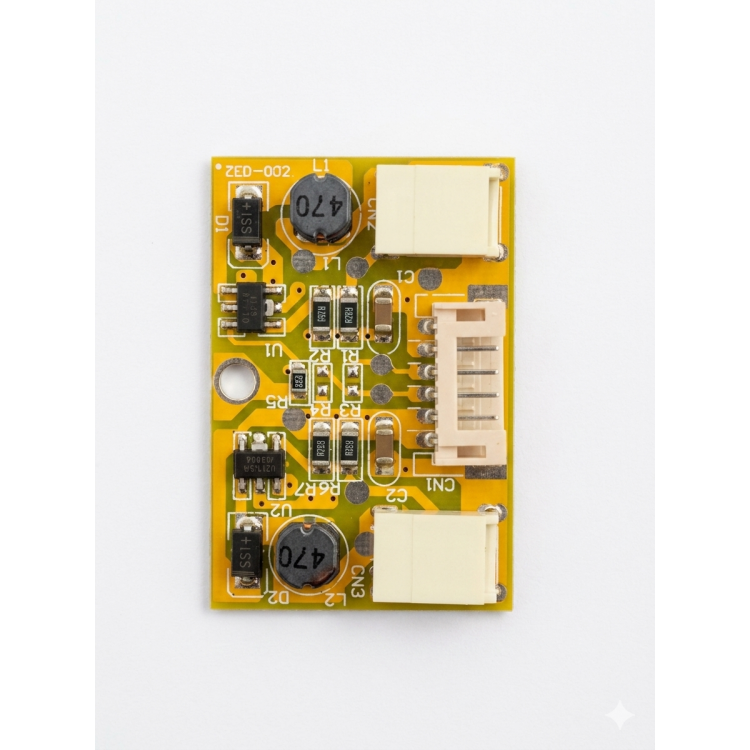

• Dual Channel Output: Features independent dual ports (CN2 and CN3) to power multiple LED backlight strips simultaneously.
• Constant Current Control: Integrated ICs regulate power dynamically to protect LEDs from overcurrent and premature burnout.
• Premium Hardware: Equipped with robust 470uH shielding power inductors (L1, L2) and high-grade SS14 surface-mount diodes for superior thermal management and energy efficiency.
• Universal Input Interface: The 6-pin main connector (CN1) layout easily integrates with standard TV and monitor power supply boards.

Technical Specifications:

• Model Code: ZED-002
• Board Type: Constant Current LED Backlight Inverter / Driver
• Supported Screen Sizes: Typically fits 15-inch to 24-inch panels (verify voltage/current compatibility before installation)
• Interface Pins (CN1): VCC, VCC, ENA (ON/OFF), ADJ (Dimming), GND, GND
• Output Connectors: 2x 2-Pin Pitch Interfaces (CN2, CN3)

Package Includes:

• 1 x ZED-002 Dual Channel LED Backlight Driver Board
